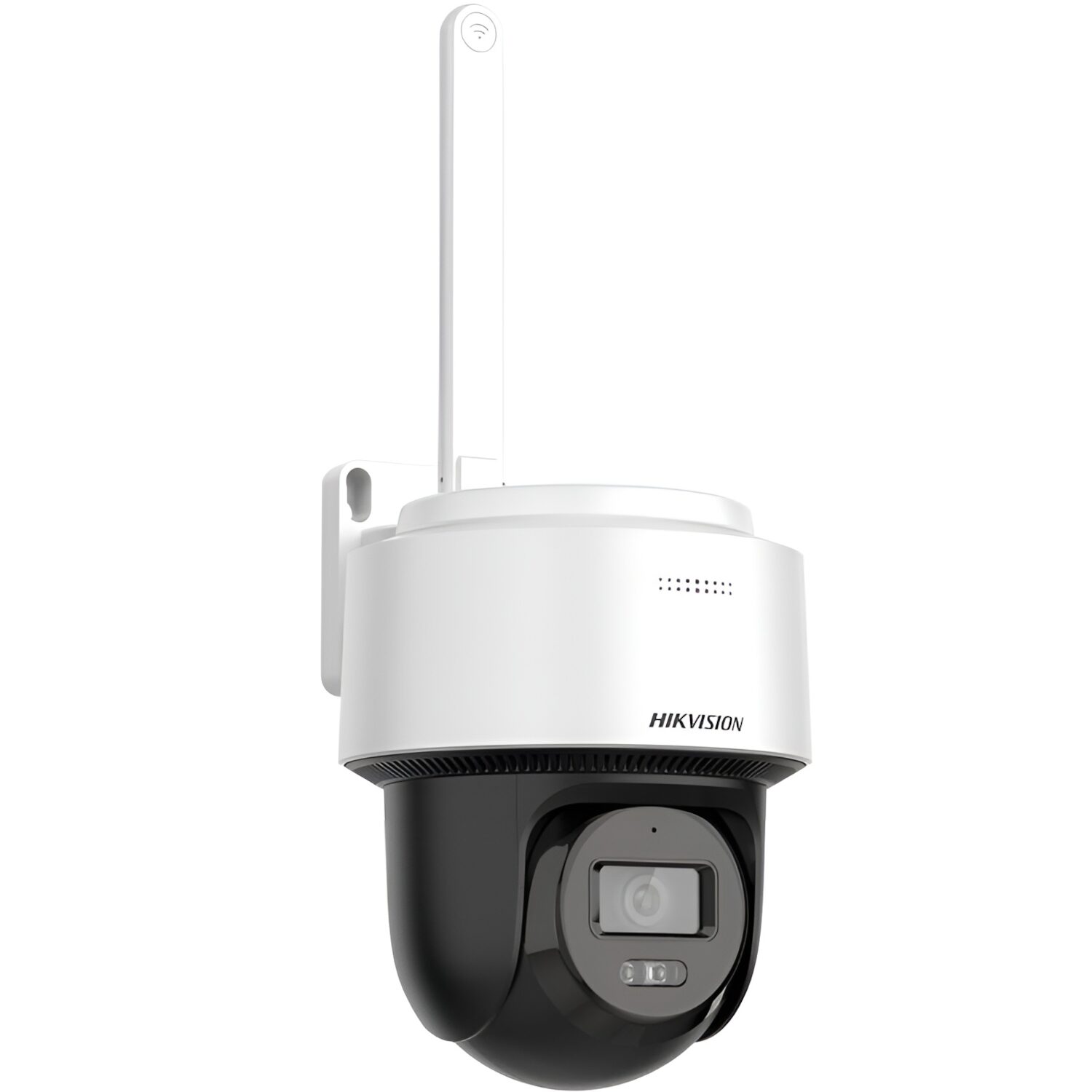

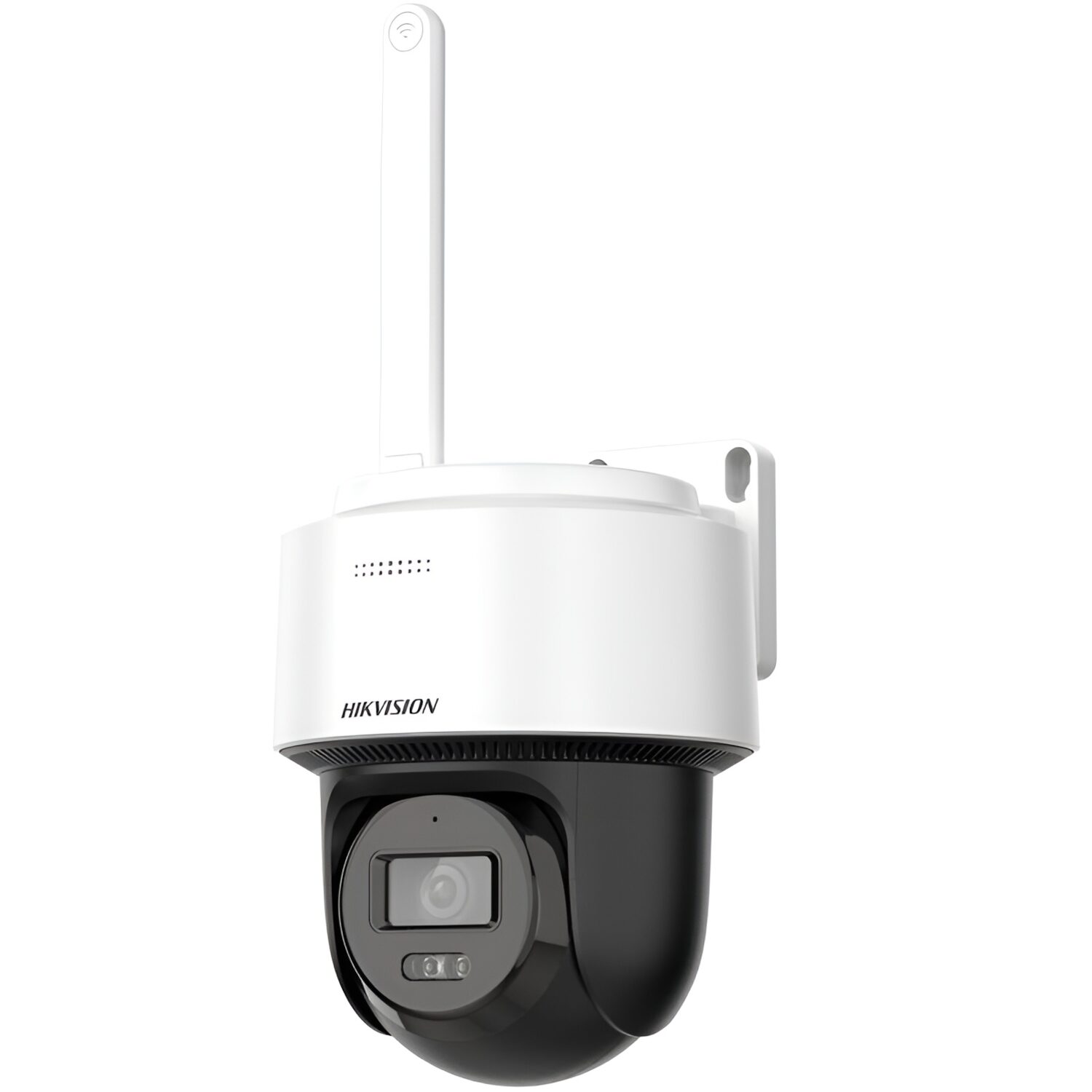

Enhance your security infrastructure with the latest in surveillance technology. Introducing the Hikvision 4MP Fixed Outdoor IR Wi-Fi Network Security Camera – the high-definition 4 MP Camera designed to provide reliable, clear imaging in all environments. Featuring a powerful 2560 × 1440 resolution, this camera ensures exceptional visual clarity for monitoring both residential and business premises. Ideal for tech-savvy consumers and B2B decision-makers, this model excels in various applications, from home security to industrial monitoring.
The advanced EXIR 2.0 infrared technology guarantees optimal night-time visibility with a long IR range of up to 30 meters, ensuring continuous surveillance around the clock. Built-in human and vehicle detection capabilities, alongside auto-tracking lite, enable the camera to intelligently focus on important movements, offering enhanced security without the need for constant manual adjustments.
Hik-Connect cloud service integration allows for remote management, offering real-time monitoring via the intuitive app. With built-in two-way audio via a microphone and speaker, you can listen and speak to anyone within the camera’s range, adding an extra layer of interaction to your security setup.
Durable and versatile, this camera boasts a water and dust-resistant design (IP66), making it suitable for both indoor and outdoor installations. The built-in memory card slot supports microSD cards up to 512 GB, ensuring ample storage for all your recordings
FEATURES:
- High-quality imaging with 4 MP resolution
- Support Human Detection, Vehicle Detection, and Auto-tracking Lite
- EXIR 2.0, advanced infrared technology with long IR distance
- Hik-Connect cloud service and app for remote management and views of devices
- Built-in microphone and speaker for real-time audio security
- Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
- Water and dust resistant (IP66)
SPECIFICATIONS:
- Camera
- Image Sensor: 1/2.9″ Progressive Scan CMOS
- Max. Resolution: 2560 × 1440
- Min. Illumination: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Lens
- Focal Length: 2.8mm
- FOV: Horizontal FOV 91°, Vertical FOV 49°, Diagonal FOV 108°
- Aperture: F1.6
- Illuminator
- Supplement Light Type Range: IR distance: up to 30 m
- Supplement Light Type: IR
- IR IR Wavelength: 850 nm
- PTZ
- Movement Range (Pan): 0° to 345°
- Movement Range (Tilt): 0° to 80°
- Pan Speed: Up to 25°/s
- Tilt Speed: Up to 20°/s
- Video
- Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream:50 Hz: 25 fps (1280 x 768 × 432, 512 × 288) 60 Hz: 30 fps (1280 x 768 × 432, 512 × 288)
- Video Compression: Main stream: H.265/H.264, Sub-stream: H.265/H.264
- Video Bit Rate: 256 Kbps to 2 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Audio
- Audio Compression: G.711, AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw), 16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz, 16 kHz
- Environment Noise Filtering: Yes
- Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
- API: ONVIF, SDK
- Security: Password protection, HTTPS encryption, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
- Wireless (Wi-Fi)
- Encryption Mode: WPA-PSK/WPA2-PSK
- Wi-Fi Protocols: IEEE802.11b, IEEE802.11g, IEEE802.11n
- Frequency Range: 2.412 GHz to 2.472 GHz
- Channel Bandwidth: 20 MH
- Modulation: 802.11b: CCK, QPSK, BPSK, 802.11g: OFDM, 802.11n: OFDM
- Transfer Rate: 11b: up to 54 Mbps, 11g: up to 54 Mbps, 11n: up to 150 Mbps
- Wireless Range: Up to 50 m (The performance varies based on the environment)
- Image
- Image Settings: Saturation, brightness, contrast, and sharpness adjustable by client software
- Wide Dynamic Range (WDR): Digital WDR
- Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB
- Built-in Microphone: 1 built-in microphone
- Built-in Speaker: 1 built-in speaker
- Event
- Basic Event: Motion detection (support alarm triggering by specified target type (human and vehicle)), exception
- Linkage: Upload to memory card, notify surveillance centre, trigger capture, audible warning, auto-tracking lite
- Deep Learning Function
- Perimeter Protection: Line crossing, intrusion, region entrance, region exiting
- General
- Power: 12 VDC ± 10%, 1 A, max. 10 W, Ø 2 mm coaxial power plug, reverse polarity protection
- Dimension: 16.4 × 18.6 × 13.2 cm
- Weight: 565 g
- Material: Plastic
- Operating Condition: -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
- General Function: Heartbeat, mirror
- Protection: IP66 (IEC 60529-2013)
WHAT’S IN THE BOX:
- Hikvision 4MP Fixed Outdoor IR Wi-Fi Network Security Camera, 2.8mm Lens x1
