Build with uncompromising power for peak performance; experience seamless connectivity and a lightning-fast gaming edge with the latest Wi-Fi 7 and PCIe 5.0.
Quick Specs
- Power your most demanding components with a robust 14+2+1 Duet Rail Power System and dual 8-pin connectors.
- Maintain optimal temperatures under extreme loads with advanced Frozr Guard cooling, including a 7W/mK thermal pad.
- Enjoy a streamlined build process with intelligent EZ DIY features like EZ PCIe Release and EZ M.2 Clip II.
- Achieve next-generation speeds with PCIe 5.0 and Lightning Gen 5 x4 M.2 for unparalleled data transfer.
- Experience superior networking and data transmission with integrated USB4 and 5G LAN, complemented by Wi-Fi 7.

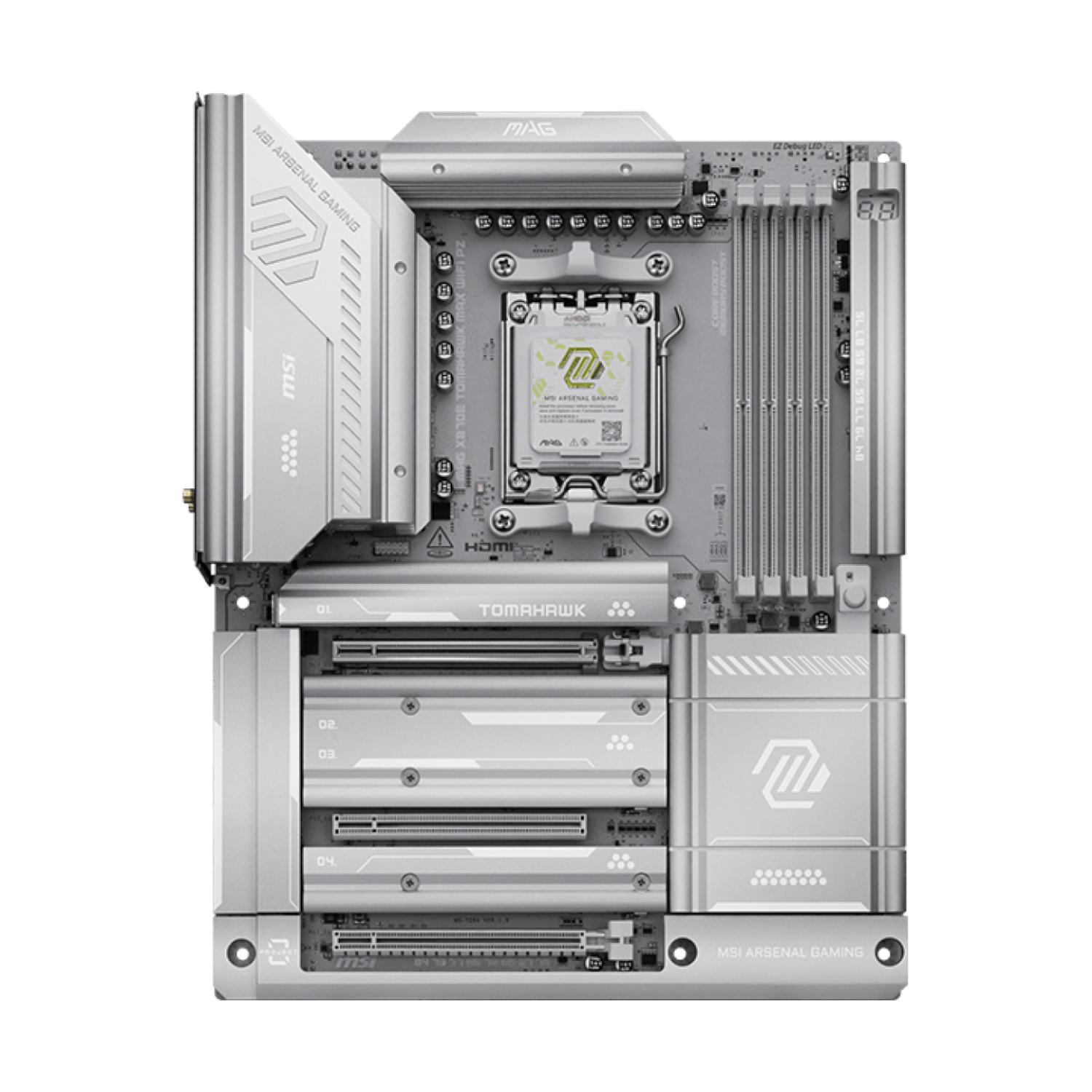

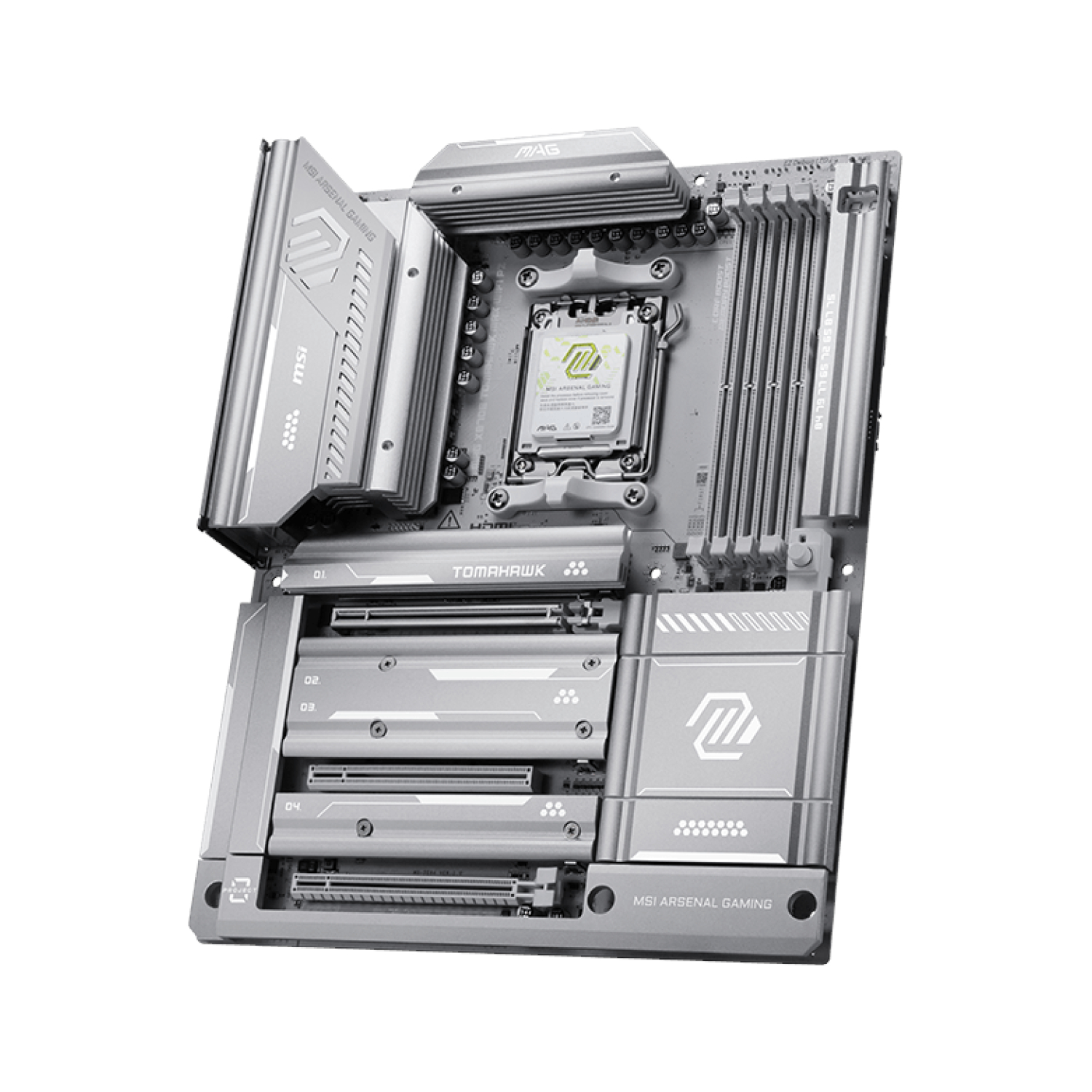

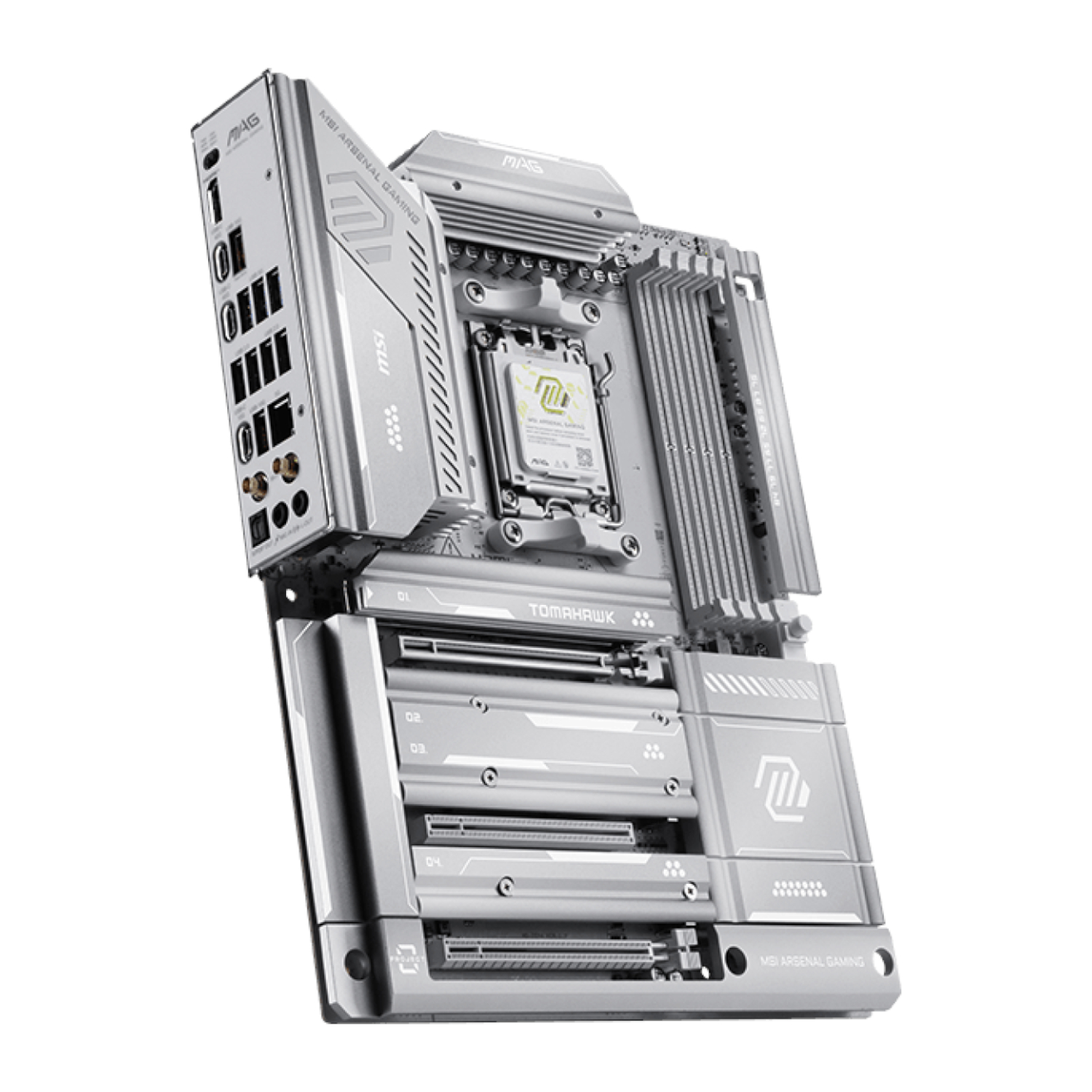

Engineered for the extreme: The MSI MAG X870E TOMAHAWK MAX WIFI PZ AM5 motherboard for the discerning South African builder.
This is not merely a foundation for your system; it is the unyielding bedrock upon which elite performance is constructed. For the builder who demands absolute stability and the raw power to push boundaries, this ATX motherboard stands ready. It is for those who understand that true performance is not an aspiration, but a requirement, whether for the intense demands of professional creative workflows or the relentless pursuit of victory in high-fidelity gaming. This motherboard is your commitment to a system that performs, endures, and excels. It is the central nervous system for a machine built for the future, designed to handle the most intense processing and data demands with unwavering resolve. When choosing an am5 motherboard, ensure it provides the stability and power you need.
Uncompromised power delivery for peak performance on an AM5 motherboard.
At the core of this MSI AM5 motherboard lies the 14+2+1 Duet Rail Power System, a testament to MSI’s commitment to delivering stable, clean power. Coupled with dual 8-pin CPU power connectors, it ensures that even the most power-hungry processors operate at their peak efficiency and stability. Features like Core Boost and Memory Boost are not mere buzzwords; they are meticulously engineered pathways to unlock the full potential of your CPU and RAM, ensuring that every calculation is precise and every frame is rendered smoothly. The 8-layer PCB, constructed with 2oz thickened copper, provides superior heat dissipation and signal integrity, forming a robust platform for extreme overclocking and sustained high-performance operation.
Advanced thermal management: The Frozr Guard advantage for your DDR5 motherboard.
Sustained performance requires superior cooling, especially for a DDR5 motherboard. MSI’s Frozr Guard system addresses this critical need head-on. The extended heatsink design significantly increases surface area for heat dissipation, working in concert with high-performance MOSFET thermal pads rated for an impressive 7W/mK. Additional choke thermal pads and the EZ M.2 Shield Frozr II ensure that your storage drives remain cool even under intense read/write cycles. This comprehensive thermal solution is engineered to prevent throttling and maintain system stability during prolonged, demanding tasks, guaranteeing a non-stop experience whether you are gaming, rendering, or compiling code.
Streamlined building: Intelligence meets efficiency with EZ DIY.
Building a high-performance PC should be an exercise in precision, not frustration. MSI’s EZ DIY features are designed to simplify and accelerate the assembly process. The EZ PCIe Release mechanism makes installing and removing graphics cards effortless. The EZ M.2 Shield Frozr II not only cools your NVMe SSDs but also provides tool-less installation, while the EZ M.2 Clip II further simplifies the process. Even the EZ Antenna, designed for quick and secure Wi-Fi connection, reflects a dedication to a user-friendly building experience. These thoughtful additions save time and reduce the potential for error, allowing you to focus on the performance of your build.
A gateway to blazing-fast connectivity and gaming on your am5 motherboard.
The future of connectivity is here. With a PCIe 5.0 slot, this motherboard offers double the bandwidth of PCIe 4.0, providing unprecedented speed for next-generation graphics cards and expansion devices. Paired with a Lightning Gen 5 x4 M.2 slot, you gain incredibly fast storage performance, reducing load times and accelerating data transfers to a minimum. This is crucial for professional applications that handle large datasets and for gamers who demand the fastest possible access to their game files. Experience the tangible benefit of speeds that keep pace with your ambition.
Ultra-fast networking and seamless multimedia with this ddr5 motherboard.
Experience the pinnacle of networking technology with integrated USB4 and a 5G LAN port, complemented by the cutting-edge Wi-Fi 7 solution. This provides secure, stable, and exceptionally high-speed networking and data transmission, essential for professional users, content creators, and competitive gamers. Whether you are engaging in high-bandwidth cloud gaming, streaming 8K content, or collaborating on large projects, this ddr5 motherboard ensures that your connection is never the bottleneck. The 5G LAN provides a robust wired connection, while Wi-Fi 7 offers unparalleled wireless speeds and lower latency, delivering a truly premium connectivity experience.
Immersive audio for the discerning ear.
The Audio Boost 5 system is engineered to elevate your auditory experience. By isolating the audio circuitry and utilising high-quality components, it delivers studio-grade sound quality. This translates to richer, clearer audio for gaming, music, and multimedia, allowing you to detect subtle in-game cues, enjoy the nuances of your favourite tracks, and be fully immersed in cinematic experiences. This motherboard doesn’t just build a powerful PC; it crafts a complete sensory experience.
FEATURES:
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
SPECIFCATIONS:
- Chipset: Intel X870E
- CPU Support:
- Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
- Socket AM5
- Memory:
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
- Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
- Ryzen™ 9000 Series Processors max. overclocking frequency:
- 1DPC 1R Max speed up to 8400+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 6400+ MT/s
- Supports AMD POR Speed and JEDEC Speed
- Supports Memory Overclocking and AMD EXPO™
- Supports Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM, Clock Driver bypass mode only
- Onboard Graphics:
- 1x HDMI™
- Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*
- 2x Type-C DisplayPort
- USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz*
- *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot:
- 3x PCI-E x16 slot
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E1 slot
- Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
- Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
- Audio:
- Realtek® ALC4080 Codec
- 7.1-Channel USB High Performance Audio
- Supports up to 32-bit/384kHz playback on front panel
- Supports S/PDIF output
- Storage:
- 4x M.2
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
- M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- 4x SATA 6G
- M.2_1 slot (From CPU)
- Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
- M2_2 slot
- Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- *Please refer to the manual for M.2 SSD heatsink restrictions.
- RAID:
- Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
- USB:
- 4x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 3x USB 5Gbps Type A (Rear)
- 4x USB 5Gbps Type A (Front)
- 2x USB 10Gbps Type A (Rear)
- 1x USB 10Gbps Type C (Rear)
- 1x USB 20Gbps Type C (Front)
- 2x USB 40Gbps Type C (Rear)
- LAN: 1x Realtek® 8126 5G LAN
- Wireless LAN & Bluetooth:
- Wi-Fi 7
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
- Supports Bluetooth® 5.4**, MLO, 4KQAM
- Internal IO:
- 1x Power Connector(ATX_PWR)
- 2x Power Connector(CPU_PWR)
- 1x Power Connector(PCIE_PWR 8pin)
- 1x CPU Fan
- 1x Combo Fan (Pump_Sys Fan)
- 6x System Fan
- 1x EZ Conn-header (JAF_2)
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 3x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 2x Direct OC Jumper (JBCLK)
- 4x USB 2.0 ports
- 4x USB 5Gbps Type A ports
- 1x USB 20Gbps Type C ports
- LED Feature:
- 4x EZ Debug LED
- 1x EZ Digit Debug LED
- 1x EZ Memory Detection LED
- Operating System: Support for Windows® 11 64-bit
- Form Factor: ATX
- Colour: Silver
WHAT’S IN THE BOX:
- MSI MAG X870E TOMAHAWK MAX WIFI PZ AM5 ATX Motherboard – Silver x1
- USB Drive x1
- SATA Cables x2
- EZ M.2 Clip II Remover x1
- EZ M.2 Clip II
- M.2 Plate Screw x1
- EZ Wi-Fi Antenna x1
- 1 to 3 EZ Conn-cable (V2)
- EZ Front Panel Cable x1
